BMV Series

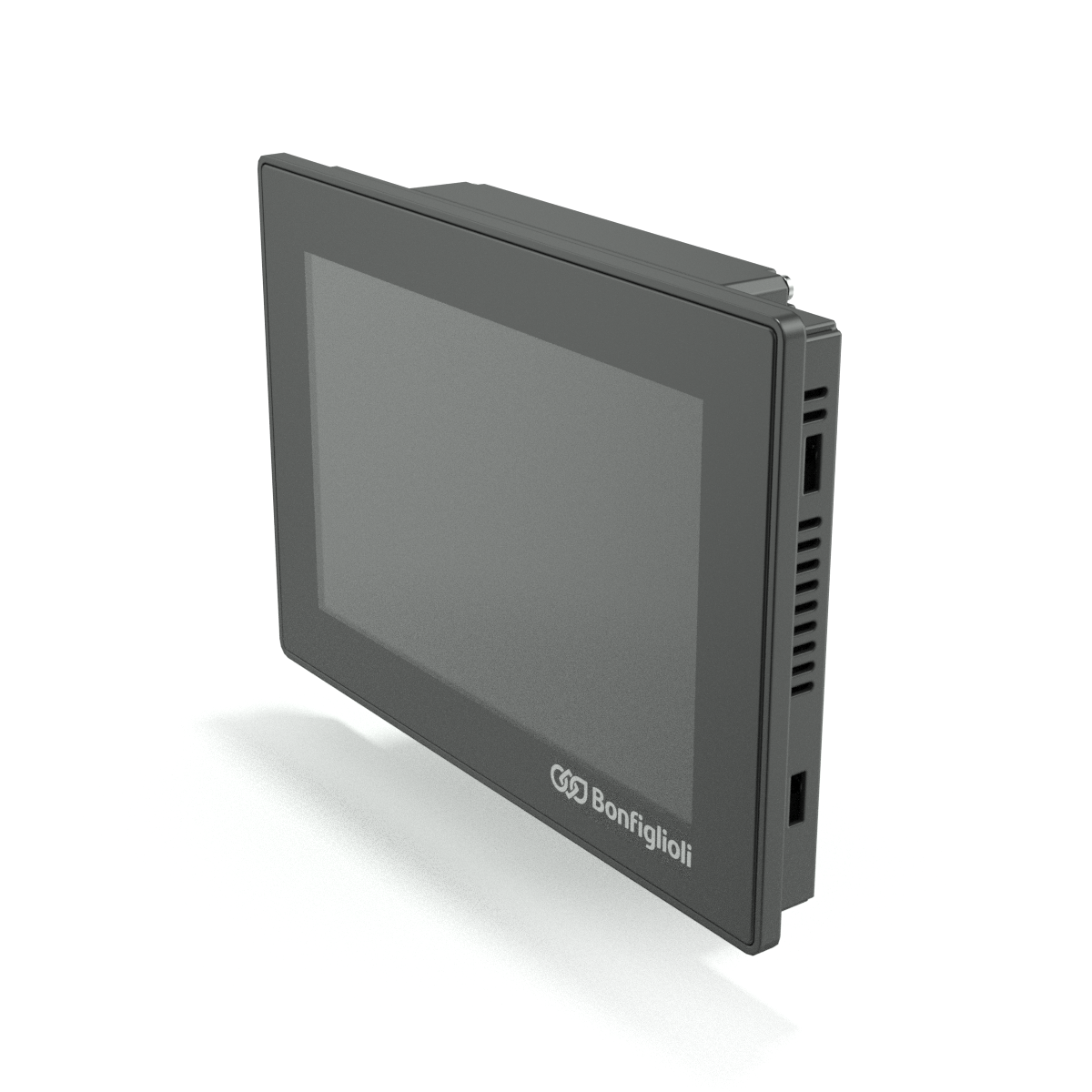

High-performance, touch-screen control panels BMV are characterized by an essential and compact design and by a high level of frontal protection (up to IP66). The HMIs BMV offer a universal widescreen display with Projected Capacitive Touchscreen (PCAP). The HMI has two Ethernet ports with switch functionality and is ideal for integration into existing networks. It comes with a scratch-proof and dirtrepellent real glass surface. Through busfield interfaces (native ModbusTCP and optional CanOpen), BMV allows a direct management of frequency Inverters and servo drives thanks to its integrated PLC functions, combining in one device visualization and the set up and control of movement functions.

Specifications

Main options

5''; 7'', 10''

Degree of protection

Up to IP66

Specifications

Software
• Simple and fast user interface configuration, thanks to BView graphical configuration environment

• Integrated PLC for advanced logic functions through Bmotion
- Device management via CanOpen/ModbusTCP
- 16 MB STX program/data memory
- 6,000 bytes of non-volatile memory
- Programming in STX high-level language in compliance with IEC- 61131-3
- Multitasking
- File handling
- String processing
• WinCE operating system

Related

BMX Series

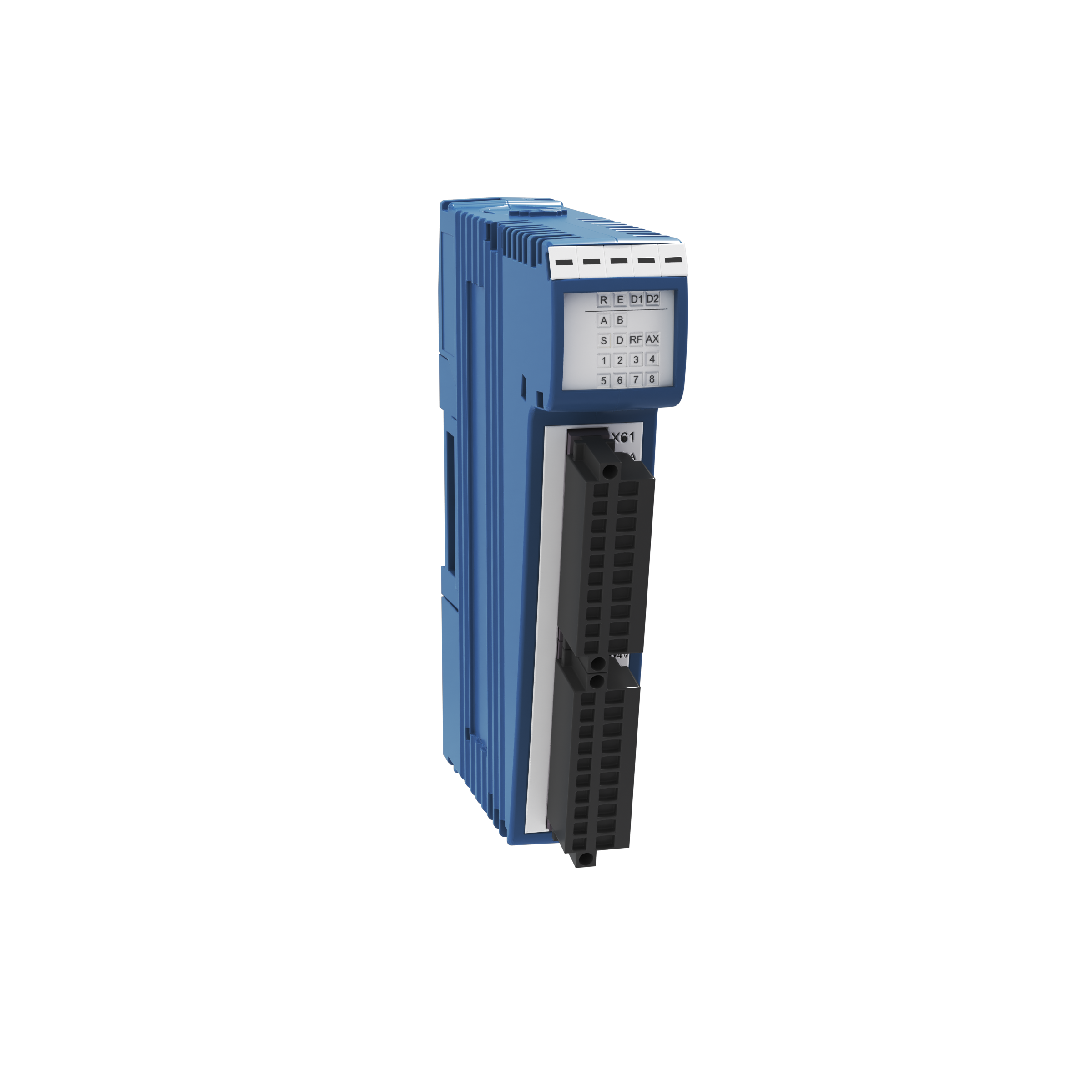

With our BMX expansion modules you can customize BMC controllers to suit any automation task. The host of expansion modules and virtually unlimited combination possibilities give you the freedom to create the machinery or system suitable for your requirements.
