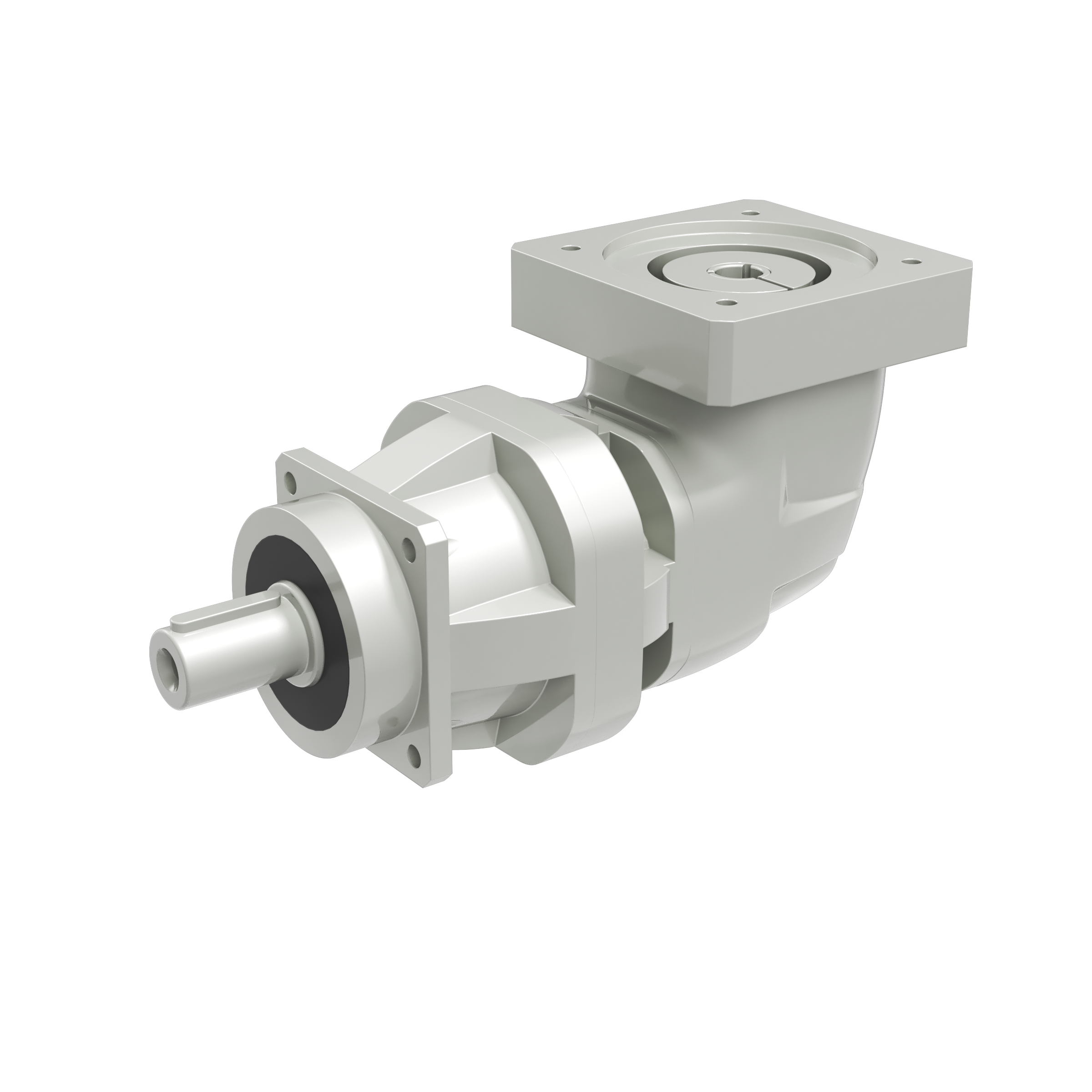

TQK Series

The TQK right-angle series represents the best solutions for issues of space saving, while maintaining the same top performance levels of the TQ in-line series. This series is particularly suited for the highly demanding requirements of servo systems, such as fast dynamic response, frequent reverse motion, precise position, motion control and high number of starts and stops

Specifications


Torque range
177 ... 10,620 lb-in

Torque Range

Sizes
060, 070, 090, 130, 160

Gear ratios
• 1 stage: 3 ... 10
• 2 stages: 16 ... 100

Max radial force
1,850 ... 15,000 N

Degree of protection
IP65

Input speed
Up to 6,000 min<sup>-1</sup>

Torsional stiffness
4.3 ... 167 Nm/arcmin

Lubrication
Standard; Food grade

Output
Smooth keyless shaft; keyed shaft

Input
Motor adapter; Without motor adapter

Specifications
