TQFE

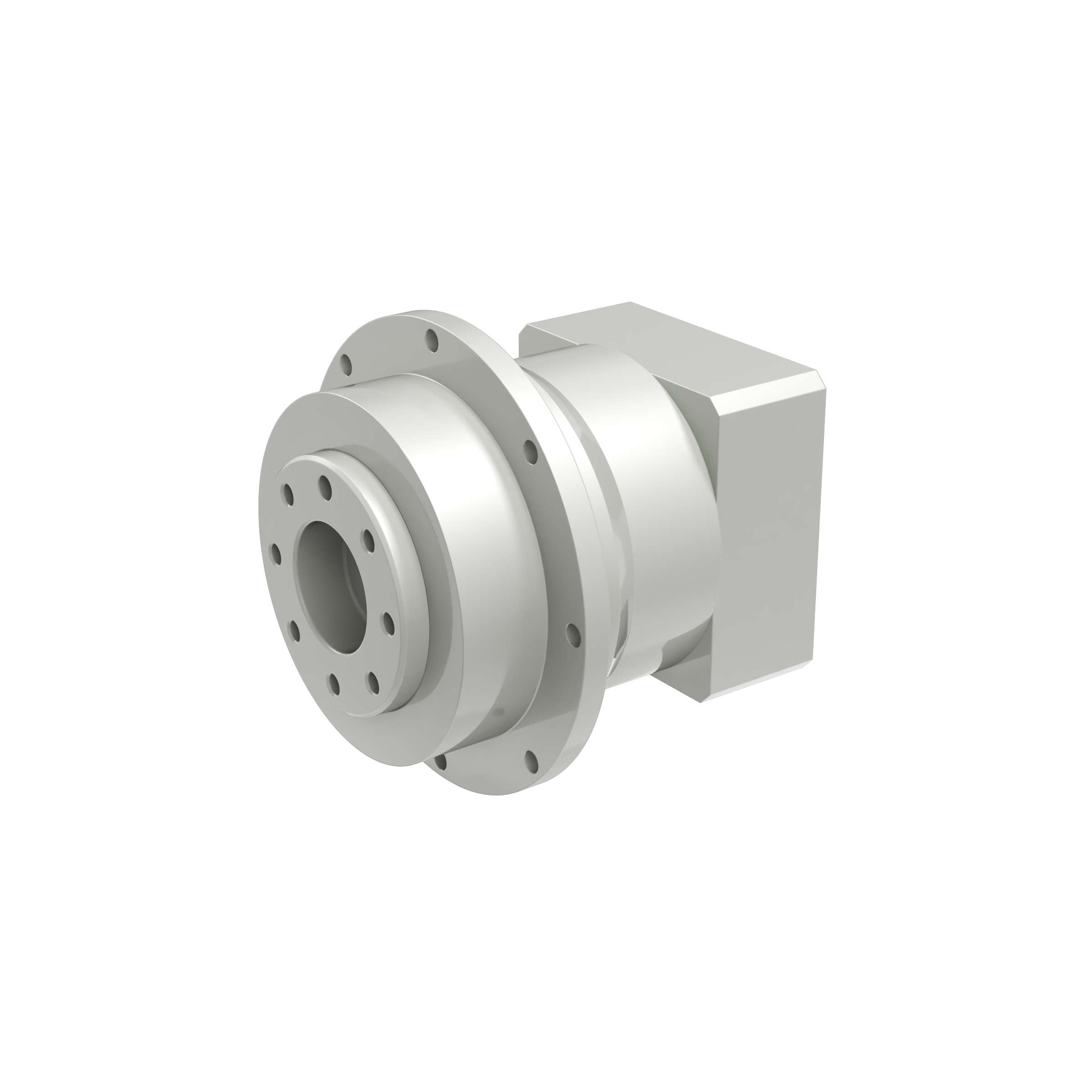

The TQFE series combines exceptional compactness with a standardized fl ange interface, ensuring a quick and easy mounting suitable for a wide variety of applications. With TQFE it is possible to have high levels of performance and precision at an optimum value-price ratio.
key features
High torsional stiffness
High compactness
Designed for continuous duty and intermittence duty
Easy and quick installation
Standardized flange for great compatibility
Specifications
Torque range
159.3 ... 2,655 lb-in
Stall Torque Range
Graphic description
| Type | Nominal Torque |
|---|---|
| TQFE 060 | 30 |
| TQFE 070 | 65 |
| TQFE 090 | 155 |
Sizes
060, 070, 090
Gear ratios
• 1 stage: 3 ... 10
• 2 stages: 9 ... 100
• 2 stages: 9 ... 100
Max radial force
550 ... 2,500 N
Degree of protection
IP54
Input speed
Up to 6,000 min-1
Lubrication
Standard; Food grade
Output
Flange
Specifications
Standard backlash
• 1 stage: less than 5 arcmin
• 2 stages: less than 7 arcmin
• 2 stages: less than 7 arcmin
Input
Motor adapter; Solid input shaft; Without motor adapter
