TR
In addition to optimal performance, very low backlash, high overload capacity and easy installation, the TR series is characterized by great modularity due to multiple design configurations, wide ratios range, two backlash classes and different optimized lubrications, ensuring high reliability and the most fitting response to different applications requirements.
key features
7 sizes available with a wide torque range
Very low backlash
High load capacity
Great flexibility thanks to a wide range of gear ratios and multiple design configurations
Designed for continuous duty and intermittence duty
Optimized lubrications for specific duty cycles
Great variety of input and output configurations
Specifications
Torque range
106.2 ... 10,620 lb-in
Stall Torque Range
Graphic description
| Type | Nominal torque (Nm) |
|---|---|
| TR 053 | 20 |
| TR 060 | 30 |
| TR 080 | 70 |
| TR 105 | 170 |
| TR 130 | 450 |
| TR 160 | 700 |
| TR 190 | 1000 |
Sizes
053, 060, 080, 105, 130, 160, 190
Gear ratios
3 ... 1000
Max radial force
500 ... 14,000 N
Degree of protection
IP65
Input speed
Up to 6,000 min<sup>-1</sup>
Torsional stiffness
1 ... 130 Nm/arcmin
Lubrication
Standard; Food grade
Output
Smooth keyless shaft; keyed shaft
Specifications
Main options
coaxial

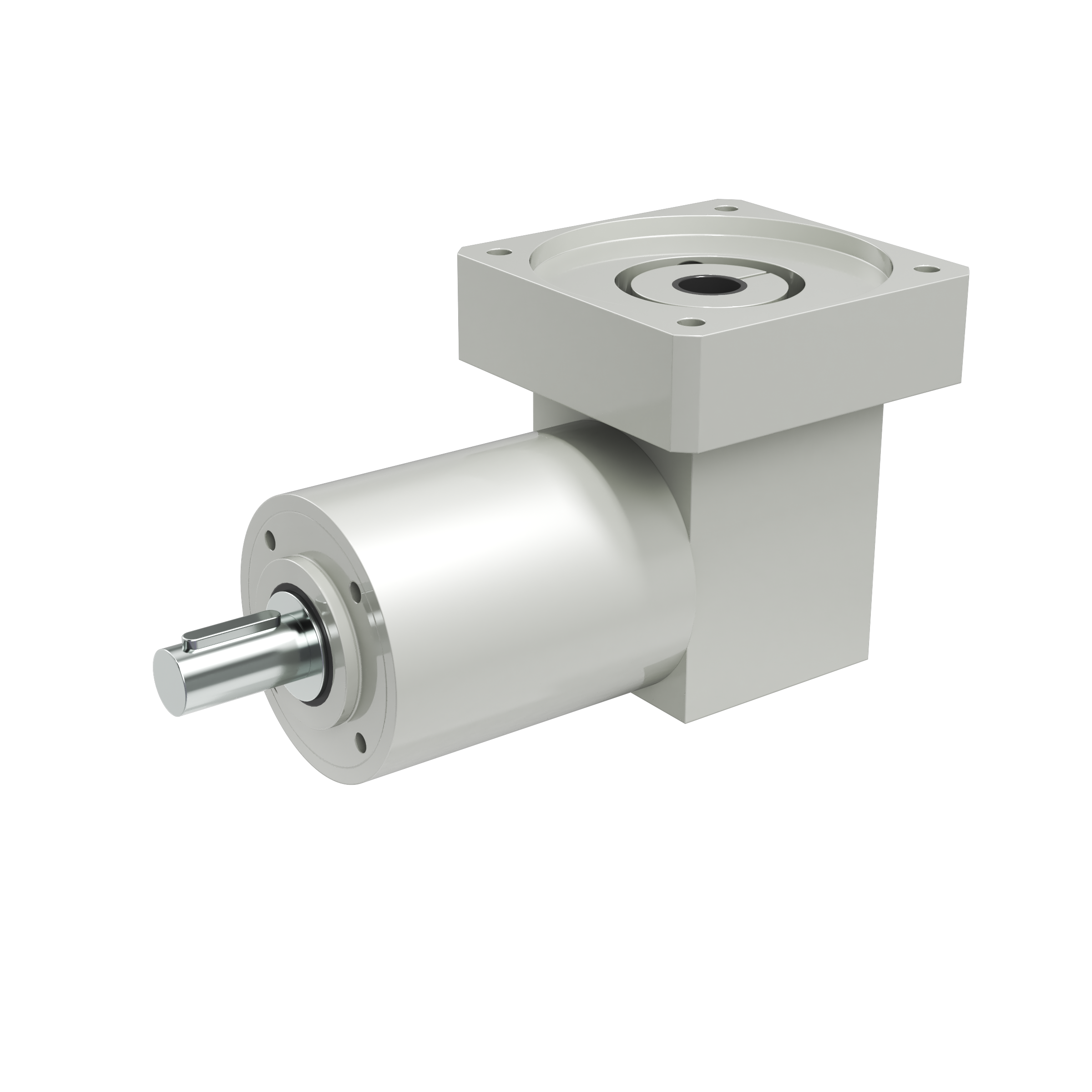

with input right-angle
with output right-angle
with input right-angle
with output right-angle
Torsional backlash
In-line
• 1 stage: less than 3 arcmin
• 2 stages: less than 3 arcmin
• 3 stages: less than 5 arcmin
Right-angle "K" / "G" / "MB"
• 2 stage: less than 3 arcmin
• 3 stages: less than 3 arcmin
• 4 stages: less than 5 arcmin
• 1 stage: less than 3 arcmin
• 2 stages: less than 3 arcmin
• 3 stages: less than 5 arcmin
Right-angle "K" / "G" / "MB"
• 2 stage: less than 3 arcmin
• 3 stages: less than 3 arcmin
• 4 stages: less than 5 arcmin
Input
Motor adapter; Solid input shaft; Without motor adapter
