Right-Angle Precision Planetary Gearboxes, TQFEK Series

TQFEK

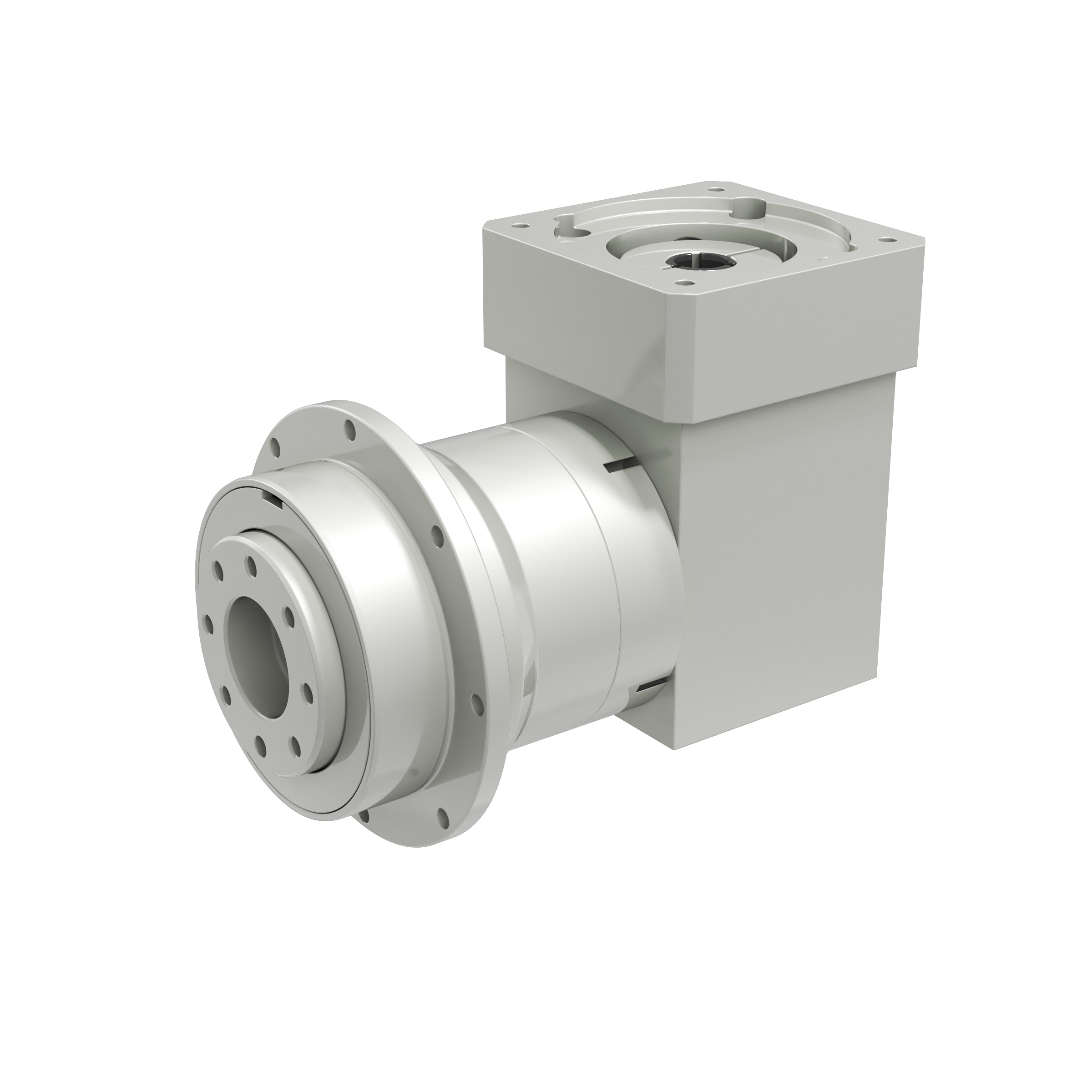

The TQFEK series offers optimized performance and features at an optimum price-performance ratio. An exceptionally compact and standardized flange interface combined with optimal positioning accuracy make it suitable for a wide range of industrial applications. Its right angle-design allows even more compactness for space-saving layouts.

Key features

Specifications

Torque range

159.3 ... 2,655 lb-in

Torque Range

Sizes

060, 070, 090

Gear ratios

• 2 stages: 3 ... 10
• 3 stages: 9 ... 100

Max radial force

550 ... 2,500 N

Degree of protection

IP54

Input speed

Up to 6,000 min-1

Lubrication

Standard; Food grade

Output

Flange

Input

Motor adapter; Without motor adapter

Specifications

Standard backlash
• 2 stage: less than 7 arcmin
• 3 stages: less than 9 arcmin
Torsional backlash
• 2 stages: less than 7 arcmin
• 3 stages: less than 9 arcmin

BMD - Servomotors

BMD servomotors are permanent magnet synchronous motors with highly compact dimensions and low inertia. They meet the most stringent demands for precision, dynamics and speed settings thanks to their high-quality neodymium iron boron rare-earth magnets and our excellent design. The motors are equipped with the latest encoder technology and are optimized for operation with frequency inverters and precision planetary gearboxes, offering an excellent synergy. More modularity is given with many options availabilities. Flywheel option provide excellent control characteristic for application with high load inertias, brake option, forced ventilation extend the performance in continuous duty operation and critical environment temperature. Even more flexibility is get due to our own design. Together with customer we are partners in developing tailored made solution wherever more functionality and features are needed to meet specific requirements.

BCR Series

BCR high-performance servomotors are designed to satisfy the needs of continuous and transient high torque applications. A wide torque range and above-average instantaneous overload ratings make BCR servomotors robust enough for even the most demanding drive applications. Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity with EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connection under all ambient operating conditions.

iBMD Series

iBMD can be controlled by a master or in standalone mode. It reduces both cable and electrical cabinet costs. Total unit size is reduced by more than 35% compared with a classic servo drive solution

BMI Series

The BMI offers a complete cost effective automation solution which is fully customizable to suit customers' needs. Combined with a Bonfiglioli drives system, the BMI series is a powerful solution dedicated to a wide range of applications.
