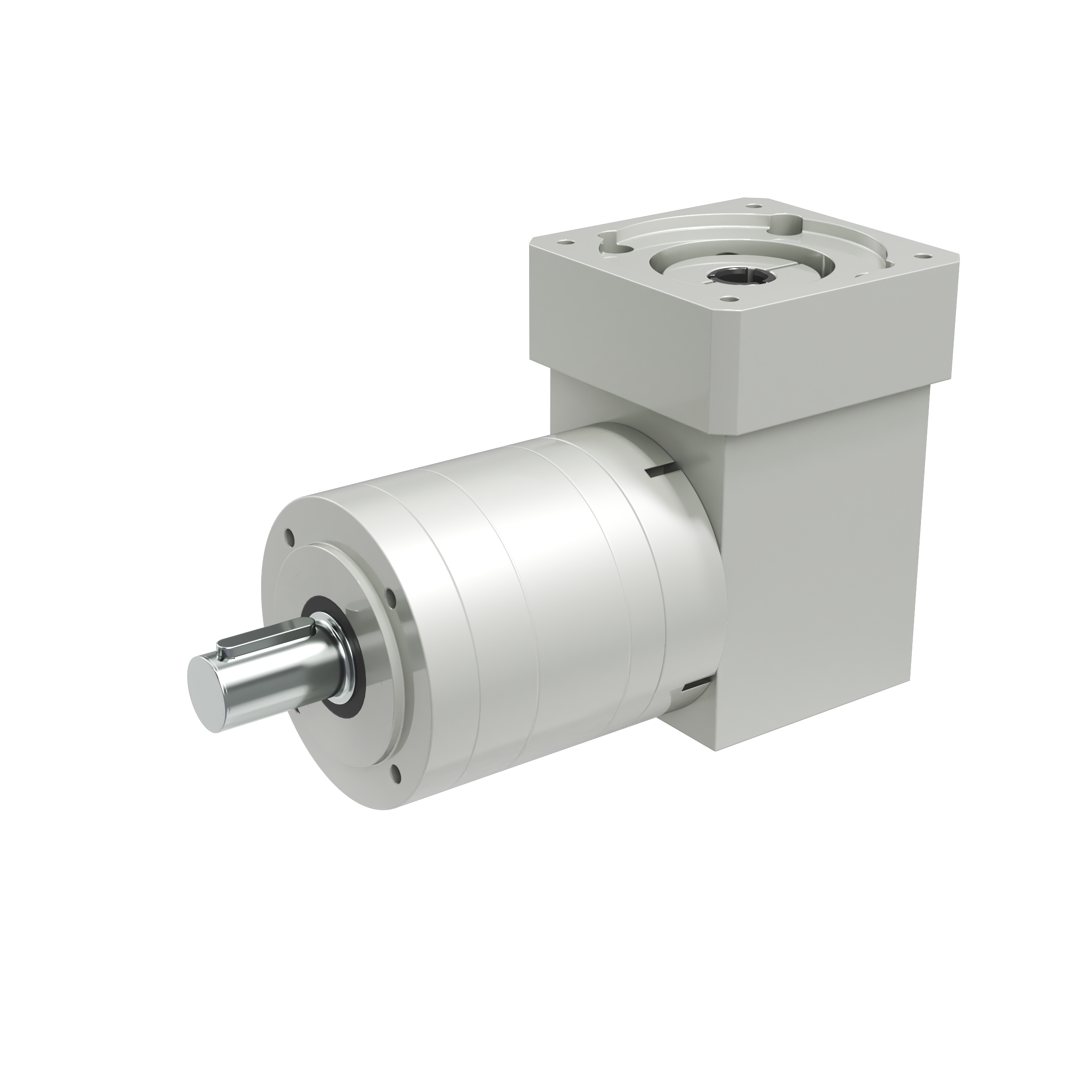

MPEK

The MPEK series offers medium levels of performance and position accuracy at a competitive value-price ratio. The output design in line with market standards ensures great compatibility for easy retrofi ts and a high level of freedom in projects development. Its right angle-design allows more compactness for space-saving layouts.

Specifications


Torque range
159.3 ... 2,655 lb-in

Torque Range

Sizes
060, 080, 120

Gear ratios
• 2 stages: 3 ... 10
• 3 stages: 9 ... 100

Max radial force
220 ... 2,000 N

Degree of protection
IP54

Input speed
Up to 6,000 min-1

Torsional stiffness
2.5 ... 23.4 Nm/arcmin

Lubrication
Standard; Food grade

Output
Smooth keyless shaft; keyed shaft

Specifications

  • Torsional backlash
    • 2 stages: less than 7 arcmin
    • 3 stages: less than 9 arcmin
  • Input
    Motor adapter; Solid input shaft; Without motor adapter
