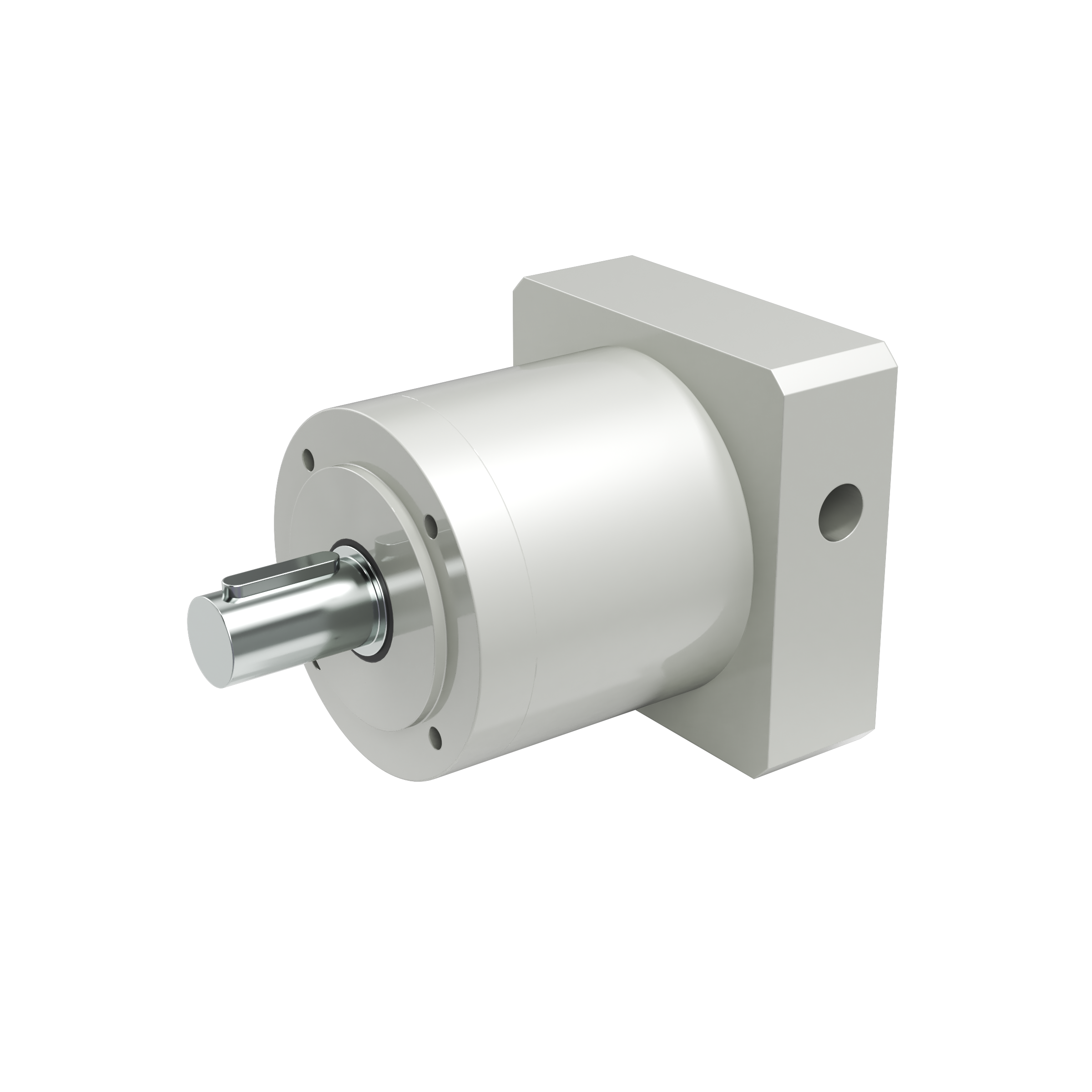

MPE
The MPE series offers a cost-effective solution for applications that require medium levels of positioning accuracy. It offers high flexibility in terms of sizes, ratios and mounting configurations for a variety of applications requirements. The output design in line with market standards ensures great compatibility for easy retrofits and a high level of freedom in projects development.
key features
Great price-performance ratio
Designed for continuous duty and intermittence duty
High compatibility for easy retrofits
Suitable for a variety of applications thanks to great flexibility
Specifications
Torque range
44.3 ... 2,655 lb-in
Stall Torque Range
Graphic description
| Type | Nominal Torque (Nm) |
|---|---|
| MPE 040 | 12 |
| MPE 060 | 30 |
| MPE 080 | 65 |
| MPE 120 | 155 |
Sizes
040, 060, 080, 120
Gear ratios
• 1 stage: 3 ... 10
• 2 stages: 9 ... 100
• 2 stages: 9 ... 100
Max radial force
220 ... 2,000 N
Degree of protection
IP54
Input speed
Up to 6,000 min-1
Torsional backlash
0.8 ... 25 Nm/arcmin
Lubrication
Standard; Food grade
Output
Smooth keyless shaft; keyed shaft
Specifications
Standard backlash
Size 040
• 1 stage: less than 15 arcmin
• 2 stages: less than 19 arcmin
Size 060; 080; 120
• 1 stage: less than 5 arcmin
• 2 stages: less than 7 arcmin
• 1 stage: less than 15 arcmin
• 2 stages: less than 19 arcmin
Size 060; 080; 120
• 1 stage: less than 5 arcmin
• 2 stages: less than 7 arcmin
Input
Motor adapter; Solid input shaft; Without motor adapter
