Typology HYDRAULIC

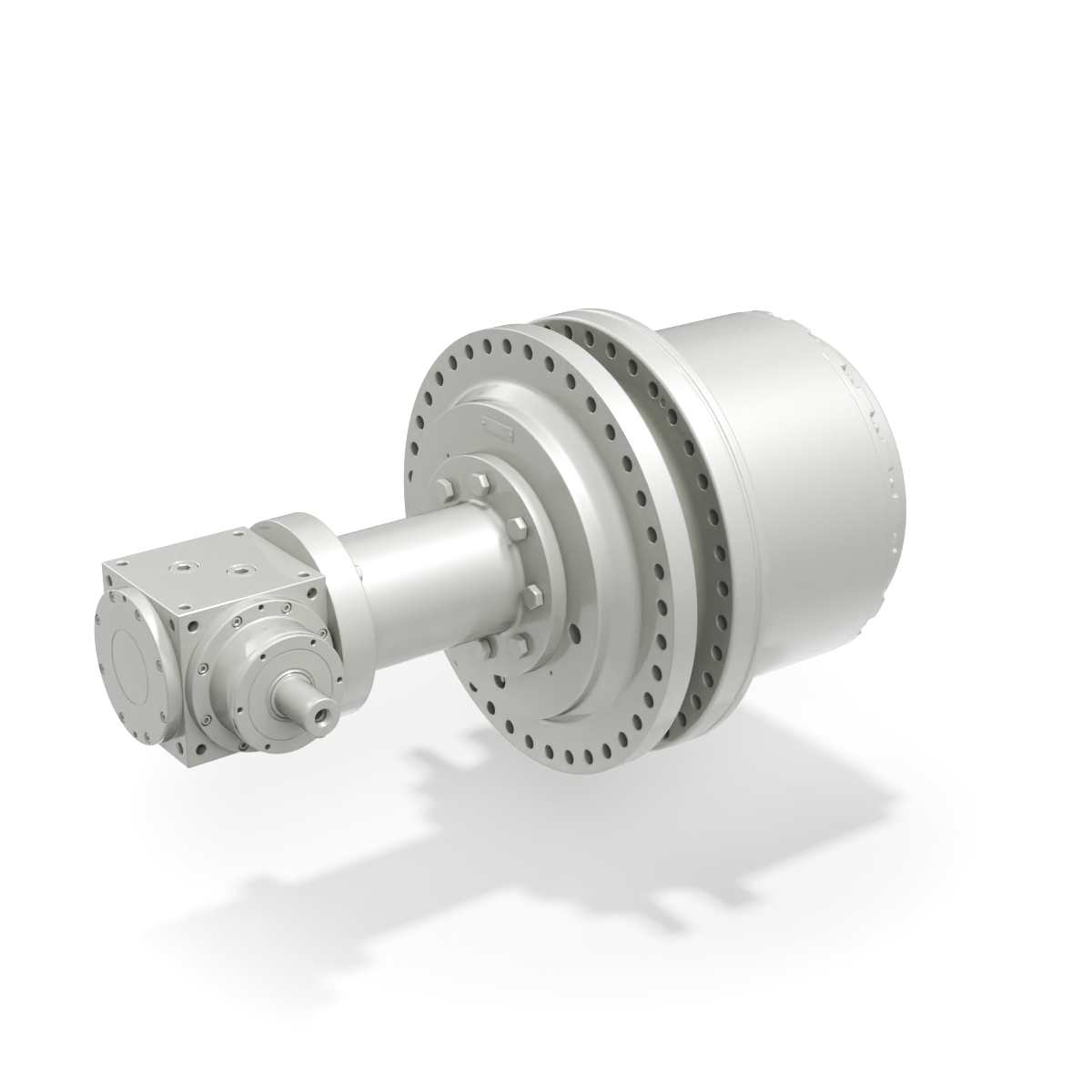

FP Series
The FP Series are perfectly suitable with any crawler, large excavators and milling machines. Thanks to compact, rugged design, high torque and load capabilities, these solutions are the best possible option for the machine. All units are available with a fail-safe parking brake and for most cartridge type fixed or variable systems. Different disengagement systems are available on demand for all the sizes.
key features
Compact structure
High performance
3-7 Planetary wheels per stage
Notchless ground tooth root
Different ratios
Integrated disc-brake
High availability by highest teeth and production quality
Specifications
Torque range
73,756 … 811,318 ft-lb
Stall Torque Range
Graphic description
| Type | Torque (kNm) |
|---|---|
| FP100 | 100 |
| FP130 | 130 |
| FP180 | 180 |
| FP220 | 220 |
| FP360 | 360 |
| FP440 | 440 |
| FP560 | 560 |
| FP900 | 900 |
| FP1100 | 1.100 |
Main options
Mechanical disconnect device
Torque range
100 ... 1.100 kNm
Gear ratios
248 ... 825
Input speed
up to 4,000 rpm
Specifications
Key benefits
Special executions on request
• Mechanical disconnect device
• Low and high temperature version
• Mechanical disconnect device
• Low and high temperature version
