FA Series
Typology HYDRAULIC
FA Series

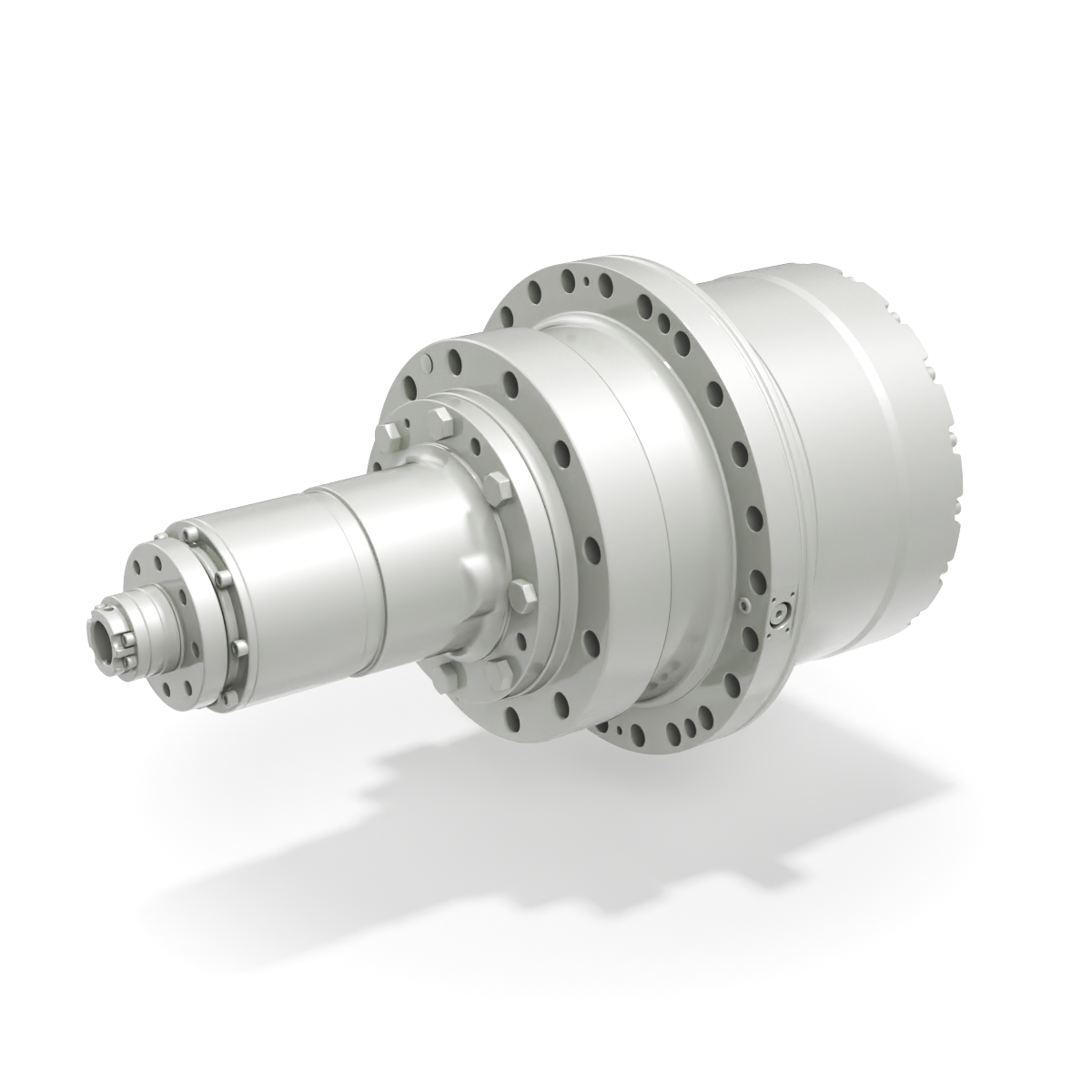

Dual stage planetary drive units with integrated pulley support, designed for cold planers, milling machines and surface mining machines with engine power from 80 to 1200kW and different rotor widths. The offset input option ensures higher machine productivity due to the increased cutting depth. The shiftable 2 speed solution allows two possible cutting speeds with huge benefits in terms of machine performance.
key features
Compact structure
High performance
Notchless ground tooth root
Different ratios
Integrated disc-brake
High availability by highest teeth and production quality
Suitable for various hydraulic motors
Specifications
Torque range
6,269 … 84,819 ft-lb
Stall Torque Range
Graphic description
| Type | Torque (kNm) |
|---|---|
| FA30 | 8.5 |
| FA40 | 12 |
| FA55 | 16 |
| FA80 | 23 |
| FA100 | 32 |
| FA130 | 38 |
| FA200 | 47 |
| FAS200 | 47 |
| FA360 | 84 |
| FA800 | 115 |
Torque range
8.5 ... 115 kNm
Gear ratios
16 ... 26
Specifications
Main options
Two speed shifting transmission
Main drive from proven cutter standard range (FA130/FA200)
Hydraulic shifting unit for gear change
Cutter main drive & shifting unit modular concept for easy maintenance
Main drive from proven cutter standard range (FA130/FA200)
Hydraulic shifting unit for gear change
Cutter main drive & shifting unit modular concept for easy maintenance
