Typology ELECTRIC

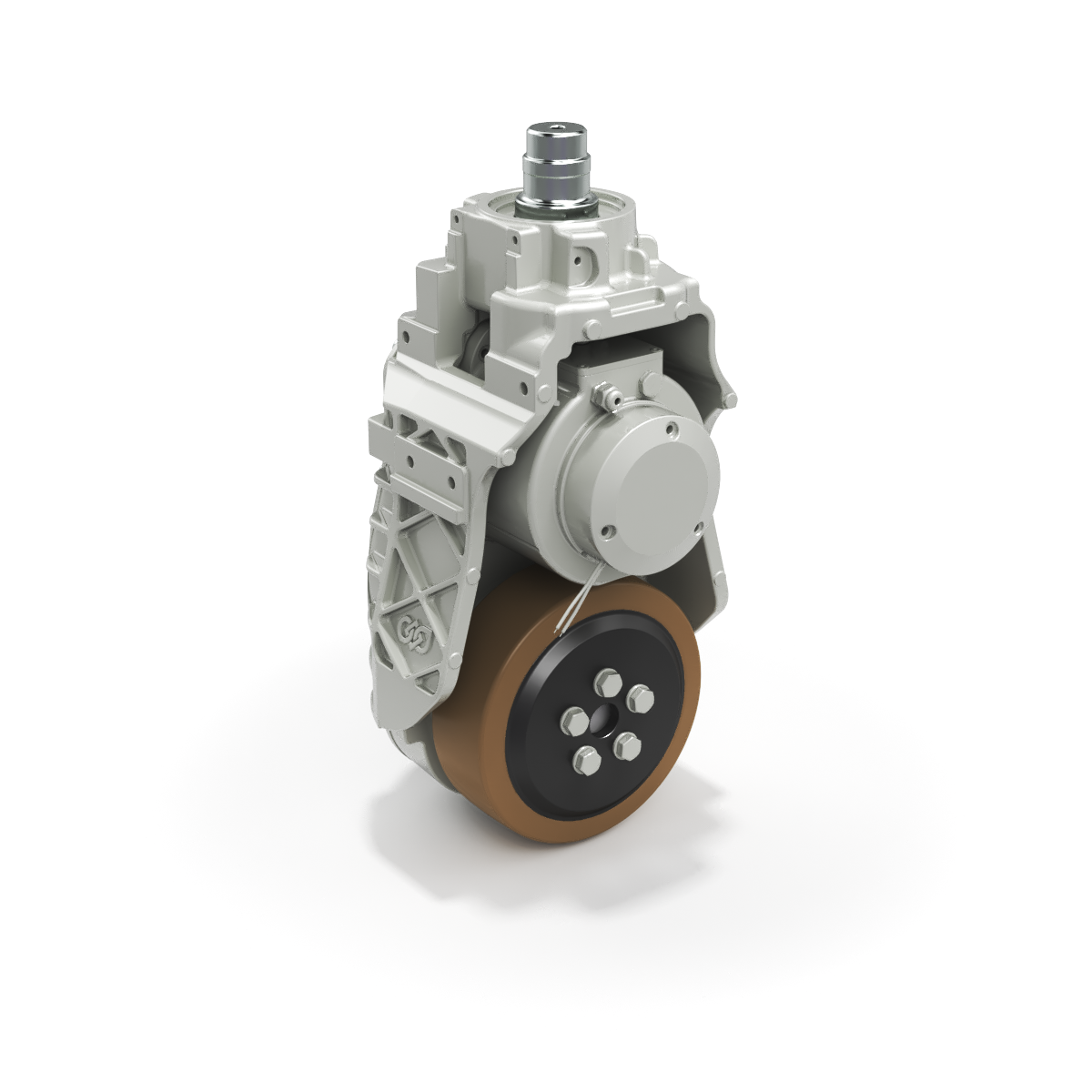

El Series
Bonfiglioli EL powertrains are a perfect match for the most demanding warehousing applications (Class 2 and Class 3). Warehousing trucks require high maneuverability in tight spaces, provided by drives like the EL series drives, with the smallest operating radius in vertical arrangements.
key features
Two-stage helical & bevel gearboxes
Manual steer and power steer versions
Optimized gear design for efficiency and noise
Integrated low-voltage electric motor
Integrated parking brake
Complete system with tyres
Cold environment versions
Integrated tiller or caster wheel supports
Specifications
Torque range
3,982 … 16,816 in-lb
Stall Torque Range
Graphic description
| Type | Torque (Nm) |
|---|---|
| EL 100 | 450 |
| EL09 V | 500 |
| EL96 | 500 |
| EL10 V | 900 |
| EL300 | 1100 |
| EL92 | 1500 |
| EL93 | 1500 |
| EL94 | 1500 |
| EL14 V | 1900 |
Torque range
450 ... 1,900 Nm
Gear ratios
13 ... 32
Power range
2 ... 7 kW
Specifications
Main options
Cold environment versions
Integrated tiller or castor wheel supports
Integrated tiller or castor wheel supports
